Il carcinoma polmonare

Il carcinoma polmonare è la principale causa di decessi correlati al cancro in tutto il mondo e il secondo cancro più comune dopo il carcinoma mammario (Sung et al., 2021). Il fumo rimane il principale fattore di rischio per la malattia, con circa tre quarti dei pazienti che sono fumatori o ex fumatori (Siegel et al., 2021). Altri fattori di rischio includono l’esposizione al fumo passivo, agli inquinanti ambientali e al gas radon, nonché i rischi professionali come l’amianto (Malhotra et al., 2016).

Decessi stimati per cancro negli Stati Uniti nel 2022

Donne

Esistono due sottotipi principali di carcinoma polmonare: carcinoma polmonare non a piccole cellule (Non-Small Cell Lung Cancer, NSCLC) e carcinoma polmonare a piccole cellule (Small Cell Lung Cancer, SCLC) (Thai et al., 2021). L’NSCLC è il più diffuso, rappresentando circa l'85% di tutti i casi, e comprende l'adenocarcinoma, il carcinoma a cellule squamose e il carcinoma a grandi cellule (Thai et al., 2021). L'SCLC è la forma più aggressiva, spesso associata a rapida crescita del tumore e metastasi precoci (Thai et al., 2021).

Le caratteristiche cliniche del carcinoma polmonare sono spesso aspecifiche nelle fasi iniziali, contribuendo a ritardi nella diagnosi (Hamilton et al., 2005). I sintomi più comuni includono tosse persistente, dolore toracico, dispnea ed emottisi (Hamilton et al., 2005). La diagnosi del carcinoma polmonare prevede studi di imaging e la biopsia tissutale “broncoscopica” o radiologicamente guidata, essenziali per confermare la diagnosi e il sottotipo istologico e guidare le decisioni terapeutiche (Detterbeck et al., 2013).

Il trattamento del carcinoma polmonare dipende dallo stadio in cui viene diagnosticato e dai sottotipi istologici (Detterbeck et al., 2013). Chirurgia, radioterapia e chemioterapia sono le modalità terapeutiche primarie (Detterbeck et al., 2013; Thai et al., 2021). L’NSCLC in stadio iniziale può essere trattato mediante resezione chirurgica del tumore, mentre i casi avanzati spesso richiedono una combinazione di chemioterapia e radioterapia (Detterbeck et al., 2013; Thai et al., 2021). A causa della sua natura aggressiva, l’SCLC viene spesso trattato con chemioterapia, talvolta in combinazione con radioterapia (Detterbeck et al., 2013; Thai et al., 2021).

L’immunoterapia è emersa come un’opzione promettente per il trattamento del carcinoma polmonare, in particolare nell’NSCLC (Thai et al., 2021; C. Wang et al., 2021). I farmaci mirati ai checkpoint immunitari si sono dimostrati efficaci nel migliorare la sopravvivenza in alcuni pazienti (Thai et al., 2021; C. Wang et al., 2021).

Sono state sviluppate anche terapie mirate, concentrandosi su specifiche mutazioni o alterazioni genetiche, per sottogruppi di pazienti affetti da carcinoma polmonare, fornendo opzioni terapeutiche più personalizzate ed efficaci (Thai et al., 2021). Un approccio multidisciplinare che coinvolga oncologi, chirurghi, radiologi e altri professionisti sanitari è essenziale per adattare i piani di trattamento alle esigenze individuali dei pazienti (Detterbeck et al., 2013).

Strategie di screening

I primi studi clinici sullo screening del carcinoma polmonare hanno utilizzato l'analisi dell'espettorato e la radiografia del torace convenzionale e non hanno rilevato alcuna associazione tra lo screening e una minore mortalità (Marcus et al., 2000). Grazie alla sua capacità superiore di rilevare noduli non calcificati che rappresentano potenzialmente un cancro in stadio iniziale (Henschke et al., 1999), studi successivi hanno scoperto che lo screening mediante tomografia computerizzata (TC) a basso dosaggio riduce la mortalità correlata al carcinoma polmonare del 20% (National Lung Screening TriaResearch Team et. al., 2011; Aberle et. al.; 2011) e del 24% (de Koning et. al., 2020). Nonostante la TC a basso dosaggio sia più costosa e comporti una dose di radiazioni più elevata rispetto alla radiografia convenzionale, i rischi associati all’esposizione alle radiazioni sono molto bassi (Sands et al., 2021) e ampi studi hanno riscontrato che tali strategie di screening sono economicamente vantaggiose (Black et al., 2014; Toumazis et al., 2021).

Lo screening del carcinoma polmonare è più efficace se mirato a soggetti ad alto rischio di sviluppare la malattia. Le attuali linee guida nazionali sullo screening in molti Paesi identificano questi individui in gran parte utilizzando criteri derivati dai primi studi clinici sullo screening del carcinoma polmonare, tra cui l’età e l’anamnesi di fumo in pacchetti-anno. Ricercatori di altri Paesi hanno sviluppato modelli matematici per stimare il rischio di carcinoma polmonare al fine di determinare l’idoneità allo screening, incorporando variabili aggiuntive come razza, anamnesi personale e familiare di carcinoma polmonare e indice di massa corporea (Cassidy et al., 2008; Field et al., 2016; Tammemägi et al., 2013).

Difficoltà presentate dallo screening

Nonostante la forte evidenza dell’efficacia dello screening del carcinoma polmonare, la sua implementazione pratica presenta diverse difficoltà. L'impegno e l'aderenza ai programmi di screening del carcinoma polmonare sono bassi, con un tasso di adesione pari solo al 7-14% negli Stati Uniti (J. Li et al., 2018; Zahnd & Eberth, 2019) e tassi bassi nel Regno Unito, in particolare tra i soggetti a più alto rischio di carcinoma polmonare (Ali et al., 2015). Man mano che sempre più Paesi implementano programmi nazionali di screening del carcinoma polmonare, la già grave carenza mondiale di radiologi (AAMC Report Reinforces Mounting Physician Shortage, 2021; Smieli- auskas et al., 2014; The Royal College of Radiologists, 2022) potrebbe complicare ulteriormente lo screening del carcinoma polmonare poiché vi saranno radiologi meno qualificati a leggere un numero maggiore di studi TC.

Ciò è particolarmente problematico in quanto la refertazione degli esami di screening del carcinoma polmonare richiede competenze e formazione specifiche (LCS Project, n.d.). Inoltre, carichi di refertazione più elevati sono generalmente associati a più errori da parte dei radiologi (Hanna et al., 2018), il che può portare a risultati peggiori dello screening. Inoltre, non vi è consenso su come gestire i reperti casuali identificati durante lo screening del carcinoma polmonare. Questi reperti comportano un ulteriore iter diagnostico in fino al 15% dei pazienti sottoposti a screening (Morgan et al., 2017) e sono associati ad un aumento dell’ansia del paziente e dei costi per il sistema sanitario (Adams et al., 2016).

Il ruolo dell'intelligenza artificiale

Individuazione dei soggetti ad alto rischio

I criteri di idoneità allo screening per il carcinoma polmonare negli Stati Uniti, dettati dai Centers for Medicare and Medicaid Services (CMS), comportano il mancato rilevamento di oltre la metà dei casi di carcinoma polmonare (Y. Wang et al., 2015). Questi criteri, che includono solo l’anamnesi positiva per il fumo e l’età, forniscono una previsione del rischio non ottimale perché ignorano altri importanti fattori di rischio (Burzic et al., 2022) e sono spesso basati su dati imprecisi o non disponibili (Kinsinger et al., 2017). Ciò è particolarmente importante considerando che circa un quarto di tutti i casi di carcinoma polmonare non sono attribuiti al fumo (Sun et al., 2007).

Per questo motivo, gli studi hanno valutato l’uso dell’intelligenza artificiale (IA) per migliorare la previsione del rischio di carcinoma polmonare e includere più persone nei programmi di screening. È stato scoperto che la combinazione di informazioni provenienti da cartelle cliniche elettroniche e radiografie del torace convenzionali utilizzando una rete neurale convoluzionale (Convolutional Neural Network, CNN) è in grado di predire meglio il carcinoma polmonare su un periodo di 12 anni rispetto ai criteri di screening esistenti ed è stata associata a una riduzione del 31% del tasso di casi di carcinoma polmonare non rilevati (Lu et al., 2020). Un altro studio che utilizzava un approccio simile ha rilevato che i pazienti classificati come ad alto rischio di carcinoma polmonare utilizzando sia le radiografie del torace convenzionali che i criteri CMS, dunque non utilizzando i soli criteri CMS, avevano un'incidenza a 6 anni di carcinoma polmonare del 3,3% (Raghu et al., 2022), molto più alta della soglia di rischio a 6 anni dell'1,3% per lo screening del carcinoma polmonare, che è simile alla soglia utilizzata dalla USPSTF (United States Preventative Services Task Force) (Wood et al., 2018).

Riduzione della dose di radiazioni e miglioramento della qualità dell'immagine

Le tecniche di deep learning possono essere utilizzate per la riduzione del rumore delle immagini, e attualmente sono disponibili in commercio alcune soluzioni per la TC del torace (Nam et al., 2021). La ricostruzione delle immagini della TC a dosaggio ultra-basso basata sul deep learning ha aumentato il tasso di rilevamento dei noduli e migliorato l'accuratezza della misurazione dei noduli rispetto agli algoritmi di ricostruzione convenzionali (Jiang et al., 2022). Anche la riduzione del rumore della TC a dosaggio ultra-basso basata sul deep learning ha mostrato una migliore qualità dell’immagine soggettiva rispetto alla TC a dosaggio ultra-basso senza riduzione del rumore (Hata et al., 2020).

Rilevamento dei noduli polmonari

I noduli polmonari sono definiti come una massa piccola (tipicamente inferiore a 3 centimetri), arrotondata o irregolare nel tessuto polmonare che può essere di natura infettiva, infiammatoria, congenita o neoplastica (Wyker & Henderson, 2022). Il rilevamento dei noduli polmonari da parte dei radiologi richiede molto tempo ed è soggetto a errori come la mancata o l’errata identificazione di noduli potenzialmente maligni (Al Mohammad et al., 2019; Armato et al., 2009; Gierada et al., 2017; Leader et al., 2005).

I noduli polmonari di piccole dimensioni sono spesso invisibili nelle radiografie convenzionali del torace, e anche i noduli più grandi possono non essere rilevati dai radiologi nelle radiografie (Austin et al., 1992). Nonostante ciò, il potenziale dell'IA per rilevare noduli polmonari e tumori sulla radiografia del torace è un'area di ricerca attiva (Cha et al., 2019; Homayounieh et al., 2021; Jones et al., 2021; X. Li et al., 2020; Mendoza & Pedrini, 2020; Nam et al., 2019; Yoo et al., 2021) in virtù del suo ruolo come esame di imaging di prima linea nelle malattie respiratorie e cardiache, nonché della sua ampia disponibilità e del suo basso costo (Ravin & Chotas, 1997).

Una meta-analisi di nove studi ha rilevato un’area sotto la curva (Area Under the Curve, AUC) di 0,884 per il rilevamento di noduli polmonari sulle radiografie del torace convenzionali utilizzando l’IA (Aggarwal et al., 2021).

Una meta-analisi di 41 studi ha rilevato una sensibilità per l'identificazione di noduli polmonari su TC a basso dosaggio del 55-99% per l'apprendimento automatico (machine learning) tradizionale e dell’80-97% per algoritmi di deep learning (Pehrson et al., 2019). Uno dei primi studi a utilizzare il deep learning per il rilevamento di noduli polmonari sulla TC a basso dosaggio ha rilevato una sensibilità del 98,3% e un falso positivo per esame utilizzando una combinazione di diversi algoritmi (Setio et al., 2017). I falsi positivi tendono ad essere vasi sanguigni, tessuto cicatriziale o sezioni della parete toracica, delle vertebre o del tessuto mediastinico (Cui et al., 2022; L. Li et al., 2019; Setio et al., 2017).

Una meta-analisi che includeva 56 studi ha rilevato un’AUC di 0,94 per il rilevamento di noduli polmonari sulla TC utilizzando il deep learning (Aggarwal et al., 2021). Tuttavia, pochissimi di questi studi hanno utilizzato dati raccolti in modo prospettico o validato gli algoritmi su un set di dati esterno indipendente (Aggarwal et al., 2021). Un algoritmo di deep learning addestrato su oltre 10.000 TC del torace a basso dosaggio ha raggiunto un’AUC di 0,86-0,94 per la previsione del carcinoma polmonare a 1 anno utilizzando l’istopatologia come standard di riferimento quando testato su tre set di dati di validazione esterna (Mikhael et al., 2023).

Uno studio condotto su 346 individui che hanno partecipato a un programma di screening del carcinoma polmonare ha rilevato che un algoritmo di deep learning aveva una sensibilità maggiore per i noduli polmonari rispetto alla doppia lettura effettuata da due radiologi subspecializzati nell’imaging toracico (86% vs. 79%), ma un tasso di falsi rilevamenti molto più elevato (1,53 vs. 0,13 per scansione) (L. Li et al., 2019). In uno studio simile condotto su 360 individui, un algoritmo di deep learning ha rilevato noduli polmonari su TC a basso dosaggio con una sensibilità del 90% e un tasso di falsi rilevamenti pari a 1 per scansione, rispetto a una sensibilità del 76% e un tasso di falsi rilevamenti di 0,04 per scansione in caso di doppia lettura degli esami da parte di coppie composte da un radiologo junior e un radiologo senior (Cui et al., 2022). La differenza in termini di sensibilità tra l'algoritmo e i radiologi è risultata particolarmente ampia per i noduli con diametro compreso tra 4 e 6 mm (86% vs. 59%) (Cui et al., 2022).

Segmentazione dei noduli polmonari

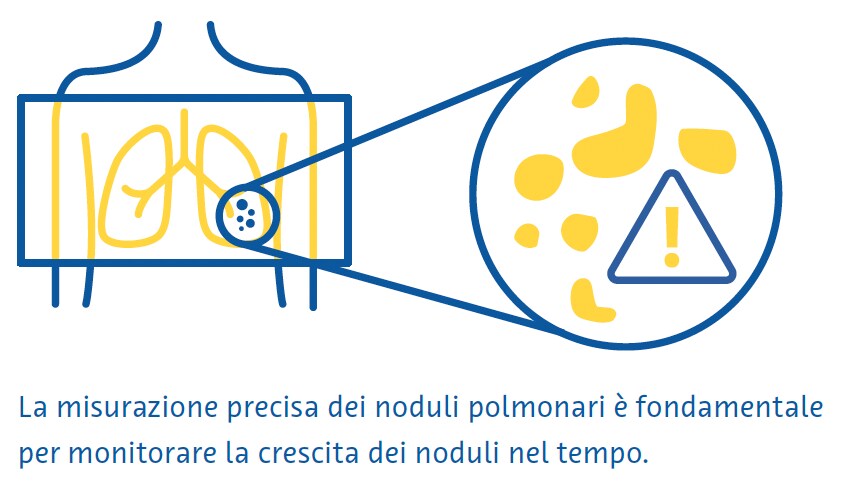

La misurazione precisa dei noduli polmonari è importante per monitorare la crescita dei noduli nel tempo, nonché per guidare la gestione di queste lesioni (Bankier et al., 2017). Tuttavia, l’errore stimato nella misurazione manuale del diametro dei noduli polmonari è di circa 1,5 mm, il che rappresenta una significativa stima errata delle dimensioni per i piccoli noduli (Bankier et al., 2017; Revel et al., 2004). Inoltre, l’uso del diametro del nodulo potrebbe non riflettere accuratamente la crescita della lesione perché presuppone che tutti i noduli siano sfere perfette (Devaraj et al., 2017). A questo proposito, l'ultima versione di LungRADS 2022 includeva la possibilità di eseguire una valutazione volumetrica (mm3).

La segmentazione dei noduli polmonari consente una stima accurata del loro volume ed è un processo in più fasi che include il rilevamento del nodulo, un processo di "crescita della regione", mediante il quale i confini dei noduli vengono identificati sfruttando le differenze nell'attenuazione dei tessuti tra il nodulo e il parenchima polmonare circostante, e la rimozione delle strutture circostanti con attenuazione simile come i vasi sanguigni (Devaraj et al., 2017).

Approcci semplici di segmentazione che si basano fortemente sulle differenze di attenuazione tra i noduli e il parenchima polmonare circostante funzionano male con i noduli iuxtavascolari e subsolidi (Devaraj et al., 2017). Le CNN, in particolare gli algoritmi di codifica/decodifica, d'altra parte, ottengono prestazioni di segmentazione molto migliori con coefficienti di somiglianza Dice (una misura della sovrapposizione spaziale) compresi tra 0,79 e 0,93 rispetto alle segmentazioni dei radiologi utilizzate come verità di base (Dong et al., 2020; Gu et al., 2021). Sono disponibili in commercio diversi algoritmi di segmentazione dei noduli polmonari basati sull’IA che eseguono la volumetria nodulare automatizzata e il monitoraggio del volume longitudinale (Hwang et al., 2021; Jacobs et al., 2021; Murchison et al., 2022; Park et al., 2019; Röhrich et al., 2023; Singh et al., 2021).

Classificazione dei noduli polmonari

I fattori che vengono presi in considerazione nel determinare la probabilità che un nodulo polmonare sia canceroso includono dimensioni, forma, composizione, posizione e se e come cambia nel tempo (Callister et al., 2015; Lung Rads, n.d.). Gli studi hanno mostrato un moderato accordo inter e intra-osservatore tra radiologi per le caratteristiche utilizzate per stimare la probabilità che un nodulo polmonare sia maligno, con classificazione discordante in oltre un terzo dei noduli (van Riel et al., 2015). Attualmente sono disponibili in commercio diverse soluzioni basate sull’IA per la classificazione dei noduli polmonari, molte delle quali includono una valutazione del rischio di malignità (Adams et al., 2023; Hwang et al., 2021; Murchison et al., 2022; Park et al., 2019; Röhrich et al., 2023).

Un algoritmo di deep learning addestrato sui dati di 943 pazienti e validato su un set di dati indipendente di 468 pazienti ha mostrato un’accuratezza complessiva del 78-80% per classificare i noduli in una delle 6 categorie (solido, calcifico, parzialmente solido, non solido, perifissurale o spiculato) (Ciompi et al., 2017). L'accuratezza era più bassa per i noduli parzialmente solidi, spiculati e perifissali (Ciompi et al., 2017).

Un algoritmo di deep learning testato su 6.716 TC a basso dosaggio e validato su un set di dati indipendente di 1.139 TC a basso dosaggio ha mostrato un’AUC di 0,94 per prevedere il rischio di carcinoma polmonare utilizzando l’istopatologia come standard di riferimento (Ardila et al., 2019). Quando disponibili, l’algoritmo incorporava informazioni provenienti da precedenti TC dello stesso paziente e, in tali casi, le sue prestazioni sono state simili a quelle di sei radiologi (Ardila et al., 2019). In assenza di esami di imaging precedenti, l'algoritmo ha prodotto tassi di falsi positivi e falsi negativi più bassi, rispettivamente dell’11% e del 5%, rispetto ai radiologi (Ardila et al., 2019).

Un altro studio ha utilizzato una CNN tridimensionale multitasking per estrarre le caratteristiche del nodulo come calcificazione, lobulazione, sfericità, spiculazione, margini e struttura con un’accuratezza "off-by-one" del 91,3% (Hussein et al., 2017).

Lo studio ha utilizzato l’apprendimento per trasferimento (transfer learning) di un algoritmo addestrato su un milione di video e lo ha testato su un set di dati di oltre 1.000 TC del torace. Lo standard di riferimento consisteva in punteggi di malignità e punteggi caratteristici del nodulo valutati da almeno tre radiologi (Hussein et al., 2017). Utilizzando una CNN 3D multitasking interpretabile testata sullo stesso set di dati senza apprendimento per trasferimento, un altro studio ha segmentato simultaneamente i noduli polmonari, ha predetto la probabilità di malignità e ha prodotto attributi descrittivi del nodulo, ottenendo un coefficiente di somiglianza Dice di 0,74 e un’accuratezza "off-by-one" del 97,6% (Wu et al., 2018).

Problemi e orientamenti futuri

Sulla base di tutte le evidenze disponibili, alcuni Paesi hanno iniziato a integrare l'uso dell'IA nei loro programmi di screening nazionali. In quest’ottica è opportuno citare la recente pubblicazione di una legge federale da parte del Ministero Federale della Giustizia tedesco che prevede l’utilizzo di un software per la rilevazione assistita da computer dei noduli polmonari nel nuovo programma di screening del carcinoma polmonare, per la rilevazione e la volumetria dei noduli polmonari, la determinazione del tempo di raddoppio del volume e l’archiviazione della valutazione per la refertazione strutturata (https://www. recht.bund.de/bgbl/1/2024/162/VO.html).

Nonostante i risultati molto incoraggianti ottenuti negli ultimi anni nel miglioramento dello screening del carcinoma polmonare utilizzando l’IA, permangono diverse importanti sfide metodologiche.

L’assoluta eterogeneità degli studi condotti finora rende difficile la sintesi delle evidenze attraverso la meta-analisi (Aggarwal et al., 2021). Inoltre, non è chiaro quanto siano generalizzabili questi algoritmi poiché la maggior parte degli studi manca di una solida validazione esterna (Aggarwal et al., 2021). Vi è inoltre la necessità di indagare il valore aggiuntivo di alcuni di questi algoritmi oltre ai miglioramenti nelle prestazioni diagnostiche, ad esempio in termini di maggiore efficienza o riduzione dei costi (National Institute for Health and Care Excellence (NICE), n.d.).

I noduli subsolidi, compresi i noduli a vetro smerigliato puro, hanno maggiori probabilità di essere maligni rispetto ai noduli solidi (Henschke et al., 2002). Tuttavia, poiché le differenze di attenuazione tra questi noduli e il parenchima polmonare circostante sono molto sottili, sono particolarmente difficili da rilevare (de Margerie- Mellon & Chassagnon, 2023; L. Li et al., 2019; Setio et al., 2017). Alcuni algoritmi automatizzati si sono mostrati promettenti per il rilevamento dei noduli subsolidi, ma devono ancora essere ampiamente validati (Qi et al., 2020, 2021).

Conclusioni

L’uso dell’IA può aiutare a identificare più individui ad alto rischio di carcinoma polmonare e migliorare la qualità degli esami di screening. L’IA si è rivelata particolarmente utile nell’identificare e segmentare noduli polmonari potenzialmente maligni, spesso superando la sensibilità dei radiologi (Cui et al., 2022; L. Li et al., 2019). Si è anche dimostrata promettente nella stima della probabilità di malignità dei noduli polmonari, in particolare quando sono disponibili esami di imaging precedenti.

La ricerca futura dovrebbe mirare ad affrontare gli inconvenienti degli studi passati, tra cui la mancanza di una validazione esterna e la negligenza dei risultati legati all’efficienza e ai costi, aprendo la strada a una diagnosi precoce e a un migliore trattamento del carcinoma polmonare.
